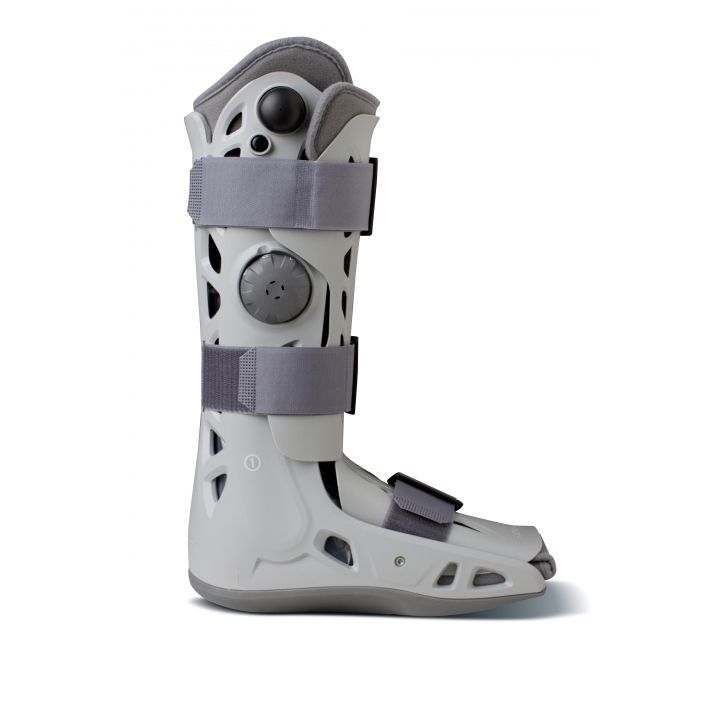

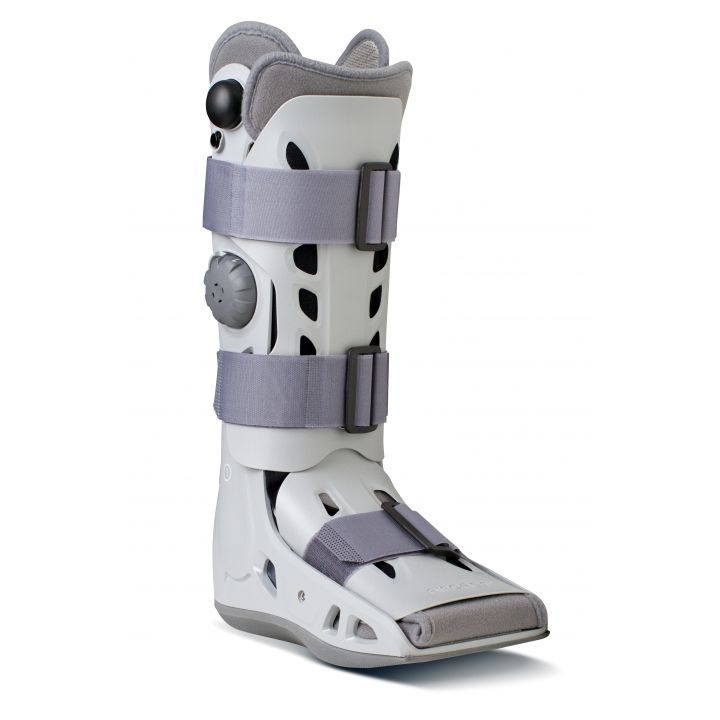

Provide protection and comfort while controlling edema with the most advanced pneumatic walking boot available. The AirSelect Elite is clinically proven to be effective in healing fractures and managing edema.1,2 The front panel is pre-inflated and combined with the overlapping aircells posterior and distal aircells for a “total contact” fit; the integrated inflation system allows patients to easily adjust aircell pressure themselves without a pump. A sleek, durable, semi-rigid shell helps support and protect the limb, and the lightweight, lab-tested rocker sole encourages a natural gait and supports everyday activities. SoftStrike technology absorbs and dissipates shock.
Ideal for: Specifically designed for stable fractures of the lower leg, foot, and ankle; severe ankle sprains; and post–operative use.
1. "Conservative Therapy for Acute Lateral Ligament Lesions – Single Chamber vs. Two–Chamber Orthosis Systems" (Schmidt, Mainers, Reintges, Lipke, Benesch, Gerngross– Surgery Dept of the Federal Arm Hospital, Ulm, Germany, 1999) compares the effectiveness of a dual aircell orthosis vs a single aircell boot system in reducing swelling 3x faster of the injured ankle. 2. Functional outcome of surgery for fractures of the ankle. A prospective, randomised comparison of management in a cast or a functional brace. (Egol KA, Dolan R, Koval KJ) show that the use of a functional brace and early movement after surgery is beneficial for patients with ankle fracture and allows for significantly earlier return to work.
Material Components
Shell: POLYPROPYLENE
Front Panel: High Density Polyethylene
Straps: NYLON
Lined Aircells (Anterior and Posterior): POLYURETHANE w/ POLYESTER FABRIC
Inflation Pumps: TPU (Thermoplastic Polyurethane )
Liner: NYLON/POLYURETHANE/POLYESTER (Outer/Foam/Inner mesh)
Binding: POLYESTER
Outer Sole / Insole: EVA/RUBBER
Selector dial: NYLON
Sock (Elite): ACRYLIC/COTTON
Ordering Information
U.S. Shoe Sizing
PART NUMBER | SHOE SIZE MEN | SHOE SIZE WOMEN | SIZE |
---|
01EP-XS | Up to 4 | Up to 5 | XS |
01EP-S | 4 - 7 | 5 - 8 | S |
01EP-M | 7 - 10 | 8 - 11 | M |
01EP-L | 10 - 13 | 11 - 15 | L |
01EP-XL | 13+ | 15+ | XL |
Product Specs
SIZE | HEIGHT OF BRACE | MID-FOOTBED WIDTH | TOE FOOTBED WIDTH | CALF WIDTH |
---|
XS | 13.6" / 34.5cm | 3.4" / 8.6cm | 3.8" / 9.7cm | 4.0" / 10.2cm |
S | 14.8" / 37.6cm | 3.6" / 9.1cm | 4.2" / 10.7cm | 4.25" / 10.8cm |
M | 16.0" / 40.6cm | 4.1" / 10.4cm | 4.6" / 11.7cm | 5.0" / 12.7cm |
L | 17.4" / 44.2cm | 4.5" / 11.4cm | 5.0" / 12.7cm | 5.0" / 12.7cm |
XL | 18.2"/ 46.3cm | 5.0" / 12.7cm | 5.5" / 14.0cm | 5.5" / 14.0cm |
Overlapping posterior and distal Duplex aircells
Reduce edema 3x faster1
Preinflated front panel aircell and custom inflation system
Provides individualized full-contact fit; no handbulb needed
Intuitive, integrated inflation system
Permits quick and easy customization of each aircell
Enclosed toe cover
Protects from hazards and the elements
Non-marking, skid resistant rubber tread
Improves traction and durability
SoftStrike technology
Absorbs and dissipates the energy during heel strike and reduce heel pain
Low profile rocker sole
Enables normal walking gait; reduces forefoot angulations and knee hyperextension
Trimmable and heat-moldable semi-rigid shell
Easily custom-fit for comfort
Sleek, open-frame design
Provides ventilated protection and supports compliance
Contours around the malleoli
Eliminates pressure for sustained comfort
Three-strap system
Evenly disperses pressure and eliminates pooling of edema
