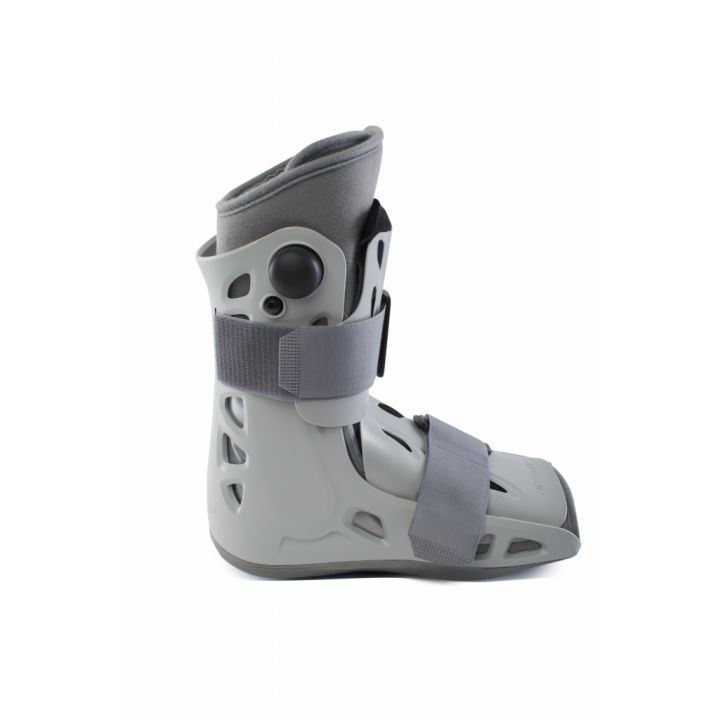

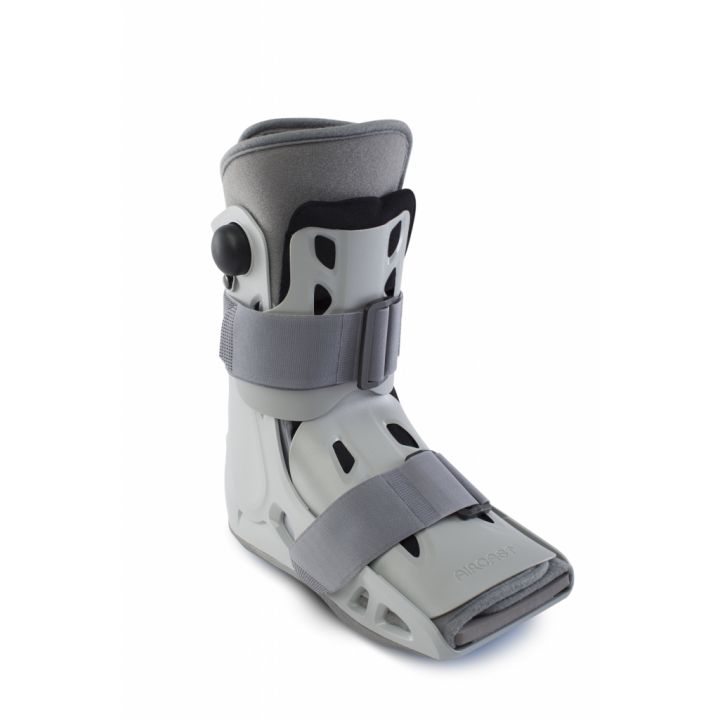

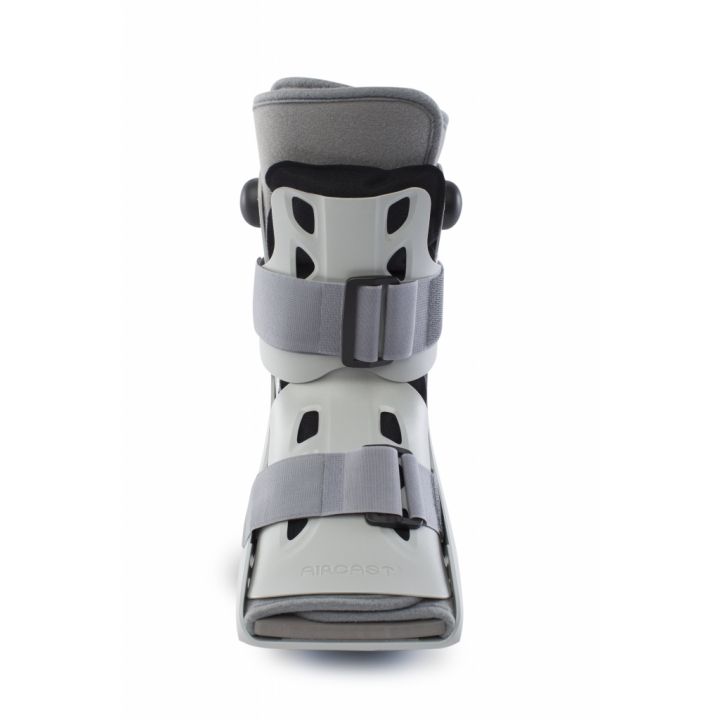

Provide comfortable moderate support and compression for forefoot, mid-foot and hind foot injuries, as well as some ankle injuries with the most advanced pneumatic walking boot available. The AirSelect Short offers superior comfort and faster healing.1,2 A sleek, durable, semi-rigid shell helps support and protect the limb, while the pre-inflated front panel and two adjustable distal aircells provide compression; patients can easily adjust aircell pressure themselves with the integrated inflation system. The boot’s lightweight, lab-tested rocker sole encourages a natural gait and supports everyday activities; SoftStrike technology absorbs and dissipates shock.
Ideal for: Specifically designed for metatarsal fracture, forefoot and mid–foot injury, acute or post– operative use, bunionectomy, and soft tissue injury.
1. "Conservative Therapy for Acute Lateral Ligament Lesions – Single Chamber vs. Two–Chamber Orthosis Systems" (Schmidt, Mainers, Reintges, Lipke, Benesch, Gerngross– Surgery Dept of the Federal Arm Hospital, Ulm, Germany, 1999) compares the effectiveness of a dual aircell orthosis vs a single aircell boot system in reducing swelling 3x faster of the injured ankle. 2. Functional outcome of surgery for fractures of the ankle. A prospective, randomised comparison of management in a cast or a functional brace. (Egol KA, Dolan R, Koval KJ) show that the use of a functional brace and early movement after surgery is beneficial for patients with ankle fracture and allows for significantly earlier return to work.
Material Components
Shell: POLYPROPYLENE
Front Panel: High Density Polyethylene
Straps: NYLON
Inflation Pumps: Thermoplastic Polyurethane
Liner: NYLON/POLYURETHANE/POLYESTER (Outer/Foam/Inner mesh)
Binding: POLYESTER
Outer Sole/Insole: EVA/RUBBER
PART NUMBER | SHOE SIZE MEN | SHOE SIZE WOMEN | SIZE |
---|---|---|---|
01ES-XS | Up to 4 | Up to 5 | XS |
01ES-S | 4 - 7 | 5 - 8 | S |
01ES-M | 7 - 10 | 8 - 11 | M |
01ES-L | 10 - 13 | 11 - 15 | L |
01ES-XL | 13+ | 15+ | XL |
SIZE | HEIGHT OF BRACE | MID-FOOTBED WIDTH | TOE FOOTBED WIDTH |
---|---|---|---|
XS | 9.1" / 23.1cm | 3.4" / 8.6cm | 3.8" / 9.7cm |
S | 9.5" / 24.1cm | 3.6" / 9.1cm | 4.2" / 10.7cm |
M | 10.3" / 26.2cm | 4.1" / 10.4cm | 4.6" / 11.7cm |
L | 11.2" / 28.5cm | 4.5" / 11.4cm | 5.0" / 12.7cm |
XL | 12.1" / 30.7cm | 5.0" / 12.7cm | 5.5" / 14.0cm |
Customizable, independent distal aircells
Integrated inflation system allows individualized fit; no handbulb needed

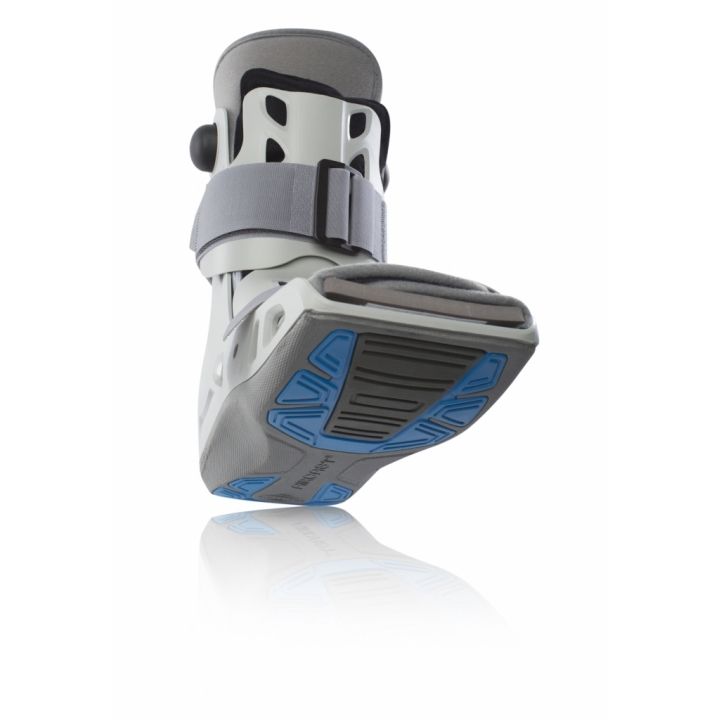

Non-marking, skid resistant rubber tread
Improves traction and durability
SoftStrike technology
Absorbs and dissipates the energy during heel strike and reduce heel pain
Low profile rocker sole
Enables normal walking gait; reduces forefoot angulations and knee hyperextension
Trimmable and heat-moldable semi-rigid shell
Easily custom-fit for comfort
Sleek, open-frame design
Provides ventilated protection and supports compliance
Contours around the malleoli
Eliminates pressure for sustained comfort
Three-strap system
Evenly disperses pressure and eliminates pooling of edema
Intuitive, integrated inflation system
Permits quick and easy customization of each aircell
