Product Code : rx-749
Model No : Item # 1025DS

Drive DeVilbiss 10L Oxygen Concentrator

Built upon the reliable features of the 525 concentrator, the 1025 Oxygen Concentrator is designed to provide optimal oxygen delivery for patients with varying flow requirements

Assembled in the USA and built in the same shell as the 5 Liter, the 10 Liter Concentrator is also compatible with cylinder transfill systems

Sold separately, the Transfill Caddy is designed with a steel frame to simply connect the 18 x 14 inch shelf, designed to support up to 40 lbs., to the DeVilbiss 10L Concentrator

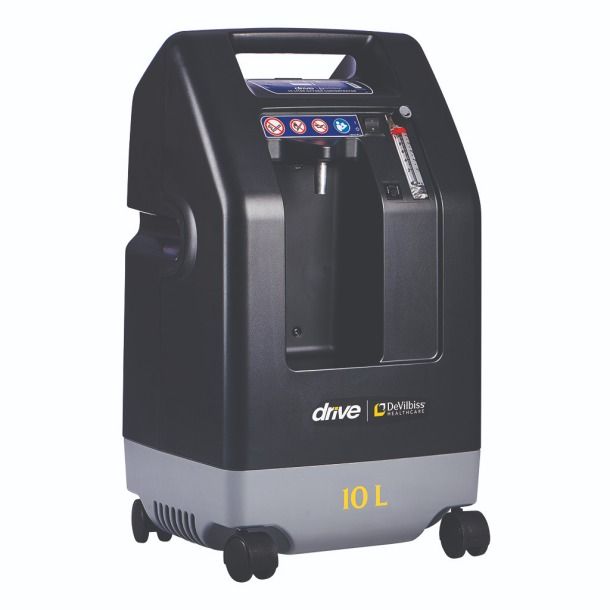

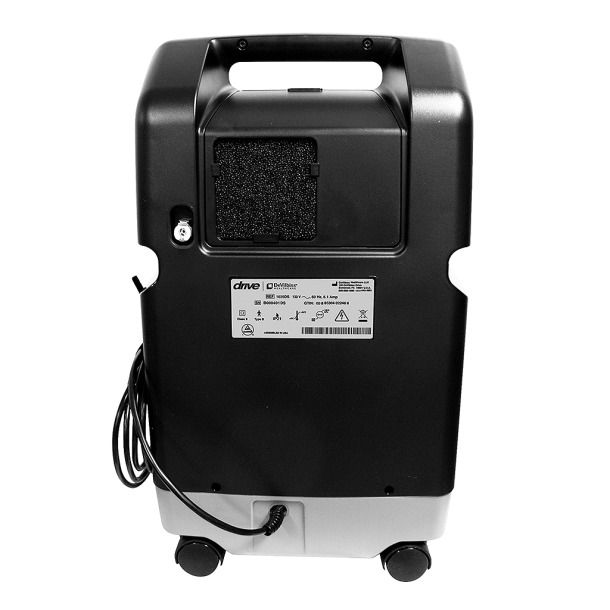

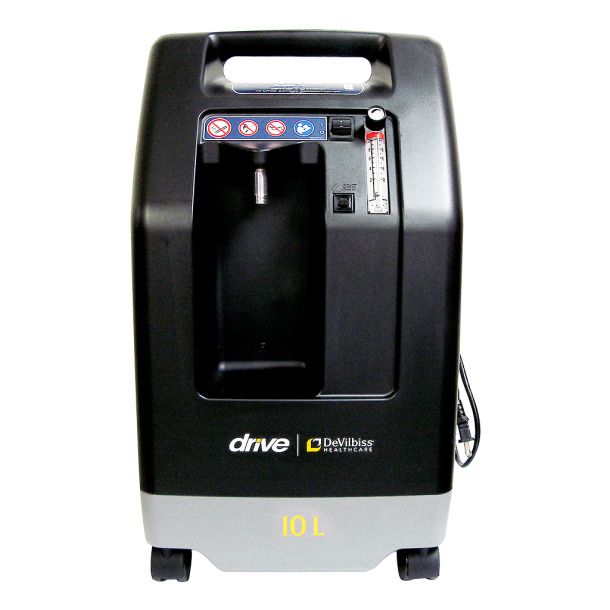

Front view (Figure A), Rear View (Figure B)

With a weight of 42 lbs. and an identical footprint to the 525 unit, the 1025 is substantially smaller and lighter than competitive 10 Liter concentrators

Capable of delivering 87% to 96% of O₂ purity from 2 to 10 LPM, the 10 Liter Concentrator is an ideal investment for your patients and business alike

Exclusive DeVilbiss OSD® (Oxygen Sensing Device), standard on every unit, monitors the oxygen produced and ensures patient safety and reliability for longer service intervals

Equipped with accessible patient controls, bright LEDs that can be seen from a distance, protected cannula fitting and recessed humidifier nook to prevent damage

Delivery Rate 2.0 to 10.0 LPM

Outlet Pressure 20.0 PSI ± 1.0 PSI

Oxygen Percentage 2-10 LPM, 87-96%

Power Consumption 120VAC, 60Hz

Power Input 639W (avg)

Product Length 24.5"

Product Overall Height (FW17 | FW19) 12"

Product Weight 2 | 4 | 6 42 lbs.

Warranty Limited 3 Years
