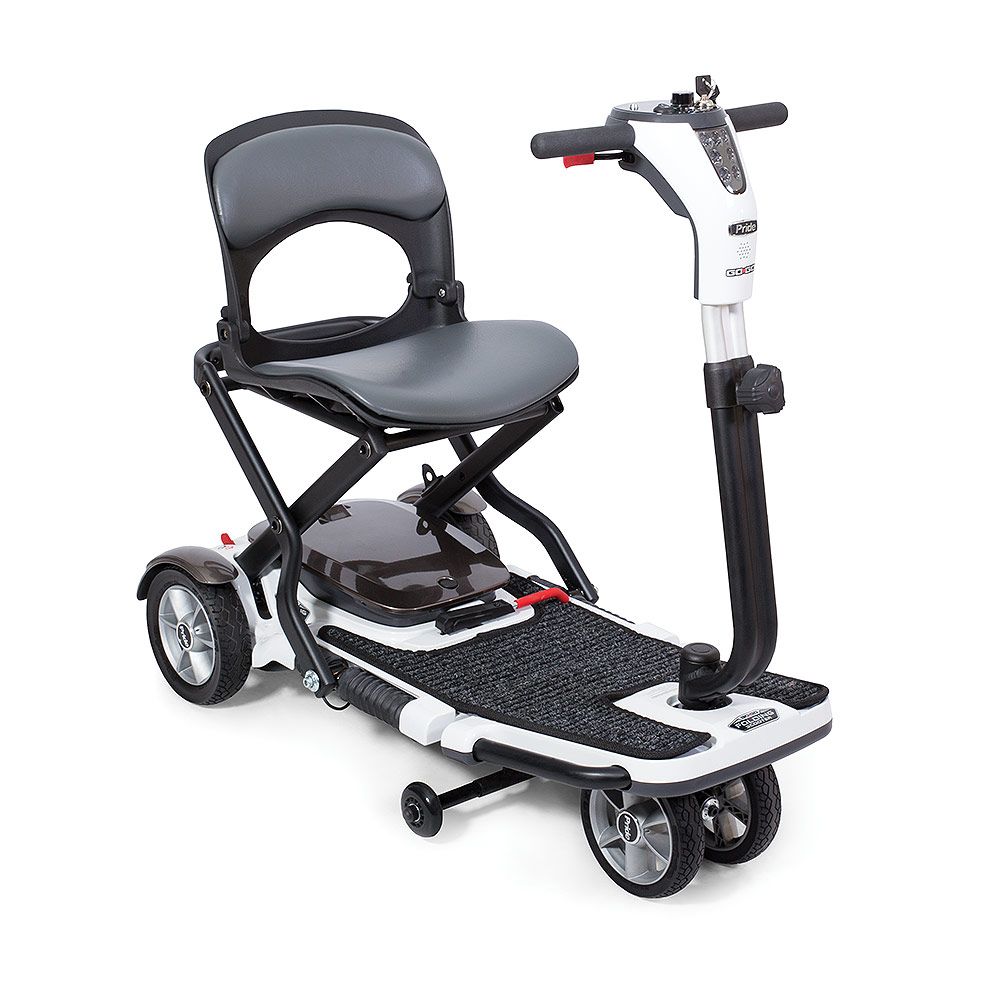

Go-Go® Folding Scooter 4-Wheel

Model Go-Go® Folding Scooter 4-Wheel

Model Number      S19

Turning Radius** 32"

Overall Width of Base** 19"

Overall Length** 37"

Maximum Speed* Up to 4 mph

Ground Clearance 2.3"

Front Tires 1.5" solid

Rear Tires 2" x 8" solid

Seat Type Compact, Foldable, Gray Vinyl-covered molded plastic, 16x13

Weight** 51 lbs. without batteries

Battery Requirements (2) 12AH (sealed lead acid) or (1) 12AH (Lithium-Ion)

Maximum Range Per Charge* Up to 13 miles (lithium-ion)

Up to 9.3 miles (sealed lead acid)

Battery Charger 2-amp, off-board (sealed lead acid) or 2.5-amp, off-board (lithium-ion)

Maximum Weight Capacity 250 lbs.

Standard Body Colors White

Battery Weight 12AH sealed lead acid - 9 lbs. each (2 required)

11.5AH lithium-ion - 5 lbs. each (1 required)

Medicare Code Coverage K0899 — power mobility device, not coded by DME PDAC or does not meet criteria

Warranty 2-year on frame;

18 months on controller;

1-year electronic components and charger

The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

*Speed & range vary with user weight, terrain type, battery charge, battery condition and tire pressure.

**Due to manufacturing tolerances and continued product improvement, this specification is subject to a variance of +/- 3%

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

• Product Stability & Brakes Effectiveness Tests
• Fatigue & Impact Strength Verification Tests
• Overall Product Performance Verification
• Dimensional Requirement Compliance
• Product Durability & Reliability Testing
• Material Protective Coating Testing Verification
• Misuse and Abuse Testing
• Ergonomic Verification
• Environmental Testing for Adverse Weather Operation Conditions
• Electronic Systems Performance and Durability
• Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
• Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
• UL94VO Flammability Testing for Compliance of Plastic Components
• Electromagnetic Compatibility (EMC)

Warranty

Lifetime limited warranty on frame

2-year limited warranty on electronics

2-year limited warranty on drivetrain

Brochure
