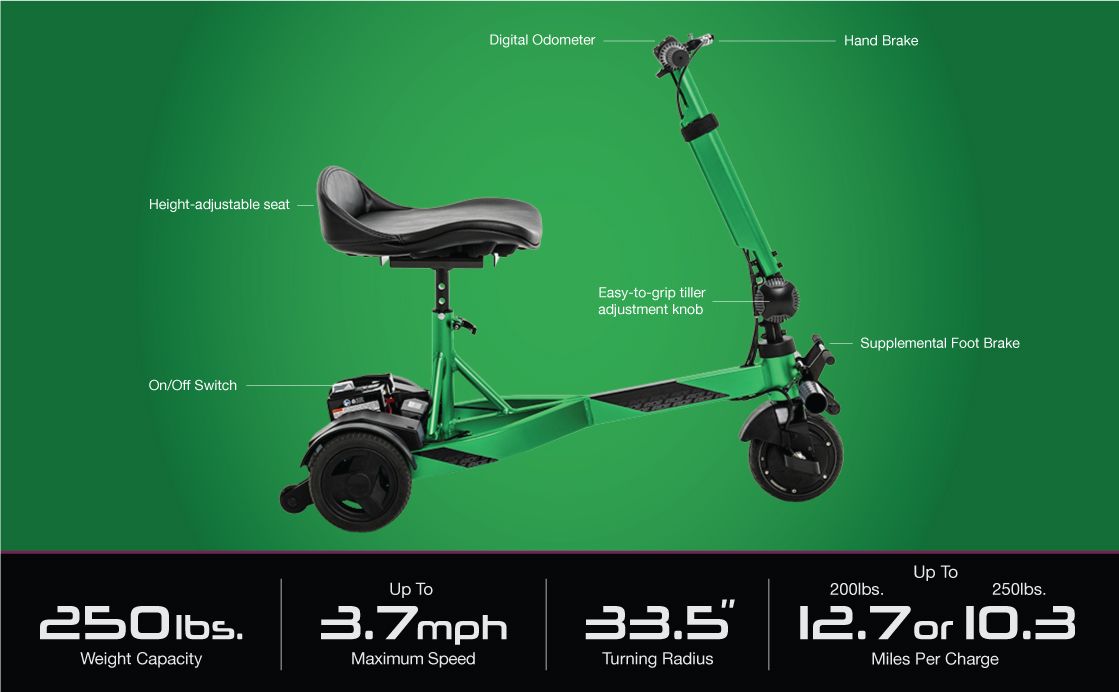

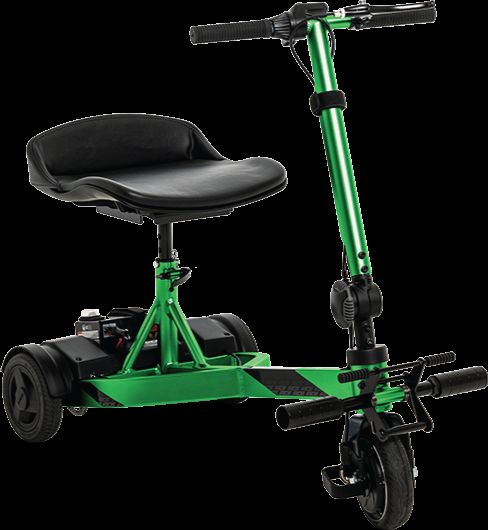

iRide™

Model iRide™

Model Number S25

Weight Capacity 250 lbs.

Turning Radius1 33.5"

Overall Length1,2 38"

Ground Clearance1 1.3" at motor

Per-Charge Range3,6 10.3 miles at 250 lbs.; 12.7 miles at 200 lbs.

Battery Charger 36 volt lithium ion, off-board

Battery Requirements Size (1) 36 volt, 5.2 Ah Lithium ion

Weight 4.5 lbs.

Overall Width 19.25"

Maximum Speed Up to 3.7 mph

Overall Weight Total weight without batteries 42 lbs. (46.5 lbs. with batteries)

Seat to Ground 18"-20"

Front Tires 6.5" solid

Rear Tires 6.75" solid

Suspension NA

Weight of heaviest piece 32 lbs. (base only)

Standard seating Type Compact

Weight 10 lbs.

Material Molded plastic

Dimensions 14.75"x 13.5"

Drive System 36 volt brushless hub motor

Dual braking system manual, dual disc

Seat to deck 8.75"-10.75"

Warranty Frame: 2-year limited Drivetrain:1-year limited Electronics: 1-year limited Battery: 6-months

Notes:

1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

2 Without front riggings.

3 Varies with user weight, terrain, battery type, battery condition and tire pressure.

4 Does not include seat or battery weights.

5 Battery weight may vary based on manufacturer.

6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

• Product Stability & Brakes Effectiveness Tests
• Fatigue & Impact Strength Verification Tests
• Overall Product Performance Verification
• Dimensional Requirement Compliance
• Product Durability & Reliability Testing
• Material Protective Coating Testing Verification
• Misuse and Abuse Testing
• Ergonomic Verification
• Environmental Testing for Adverse Weather Operation Conditions
• Electronic Systems Performance and Durability
• Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
• Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
• UL94VO Flammability Testing for Compliance of Plastic Components
• Electromagnetic Compatibility (EMC)

Warranty

Frame: 2-year limited

1- year limited Drivetrain

1-year limited Electronics

Battery: 6-months
