*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
CATEGORY SPECIFICATION

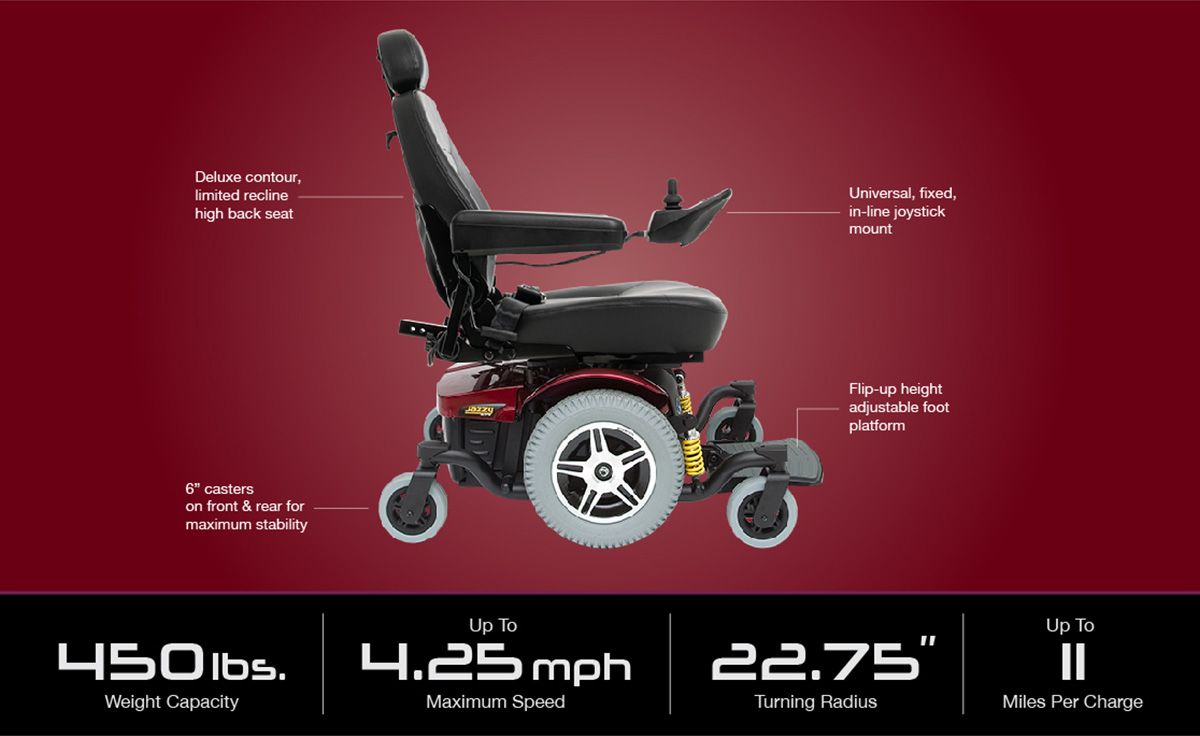

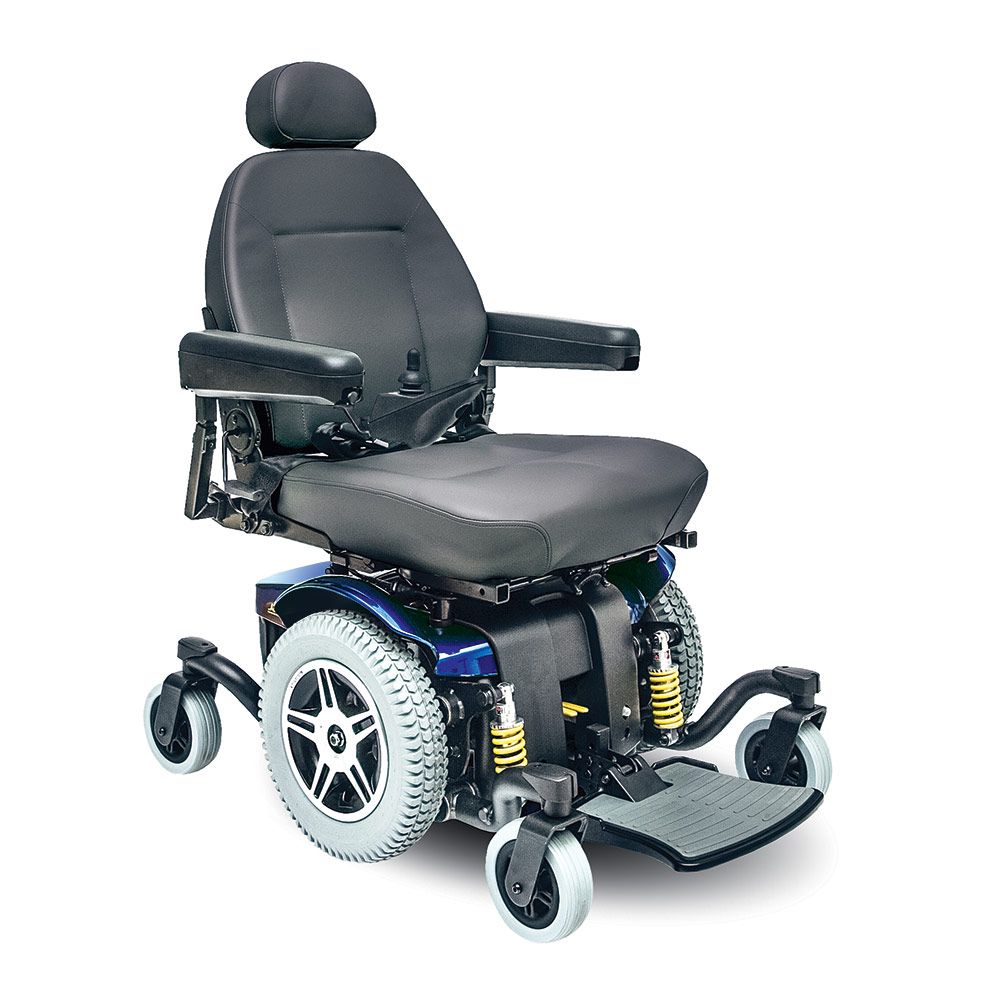

Model Jazzy® 614 HD
Weight Capacity 450 lbs.
Turning Radius1 22.75"
Width1 25.5"
Length1,2 35.5"
Maximum Speed3 Up to 4.25 mph
Ground Clearance1 2.25"
Front Wheels 6" solid casters
Drive Wheels 14" foam filled
Rear Wheels 6" solid casters
Drivetrain Two motor, in-line, Mid-Wheel 6®
Braking System Regenerative and electro-mechanical
Suspension Type Active-Trac® (ATX) with Mid-wheel 6® Technology
High-Back Seat (max. size) 24"W x 24"D
High-Back Seat-to-Floor Range 20.5 23.5
Synergy® Seating 24W 24D
Synergy® Seat-to-Floor Range 17.75 19.75
Standard Electronics 50A, Dynamic Shark
Battery Size (2 required) 12 volt, NF-22
Standard Battery Charger 5A, off-board
Per-Charge Range3,6 Up to 11 miles
Battery Weight5 37 lbs.
Weight of Heaviest Piece4 122 lbs.
Standard Seat Weight 52 lbs. (high-back)
Standard Seat Size 20" x 18"-20"
22" x 20"-22"
Medicare Code Coverage Group 2: Heavy Duty (K0824/K0825)
Warranty
5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:
