*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
CATEGORY SPECIFICATION

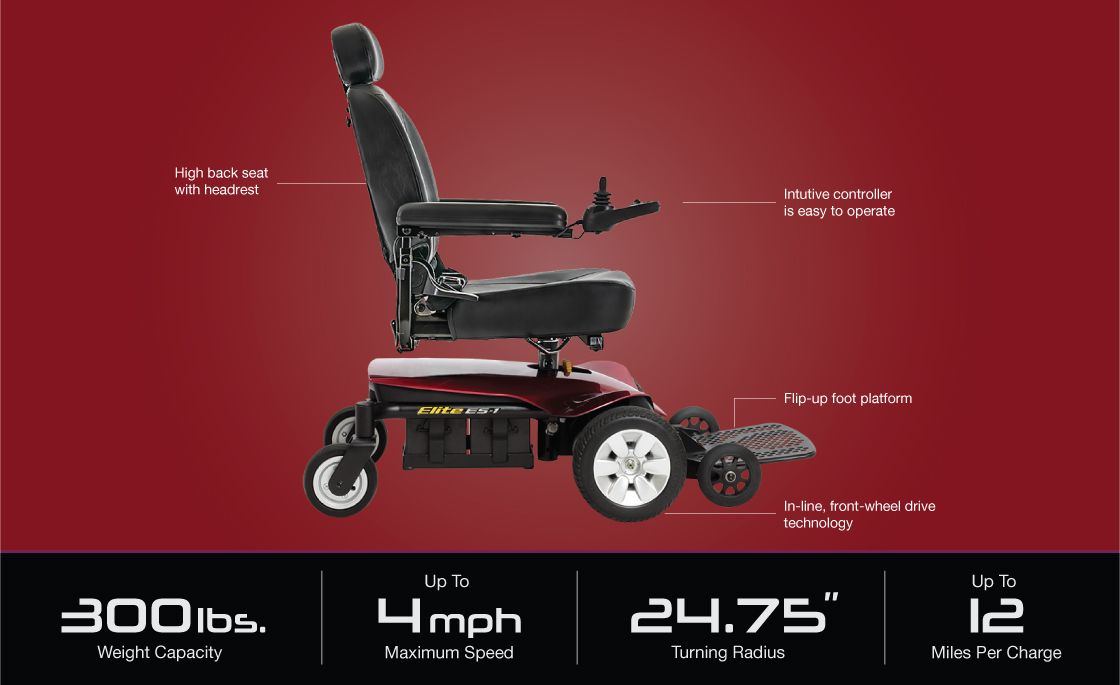

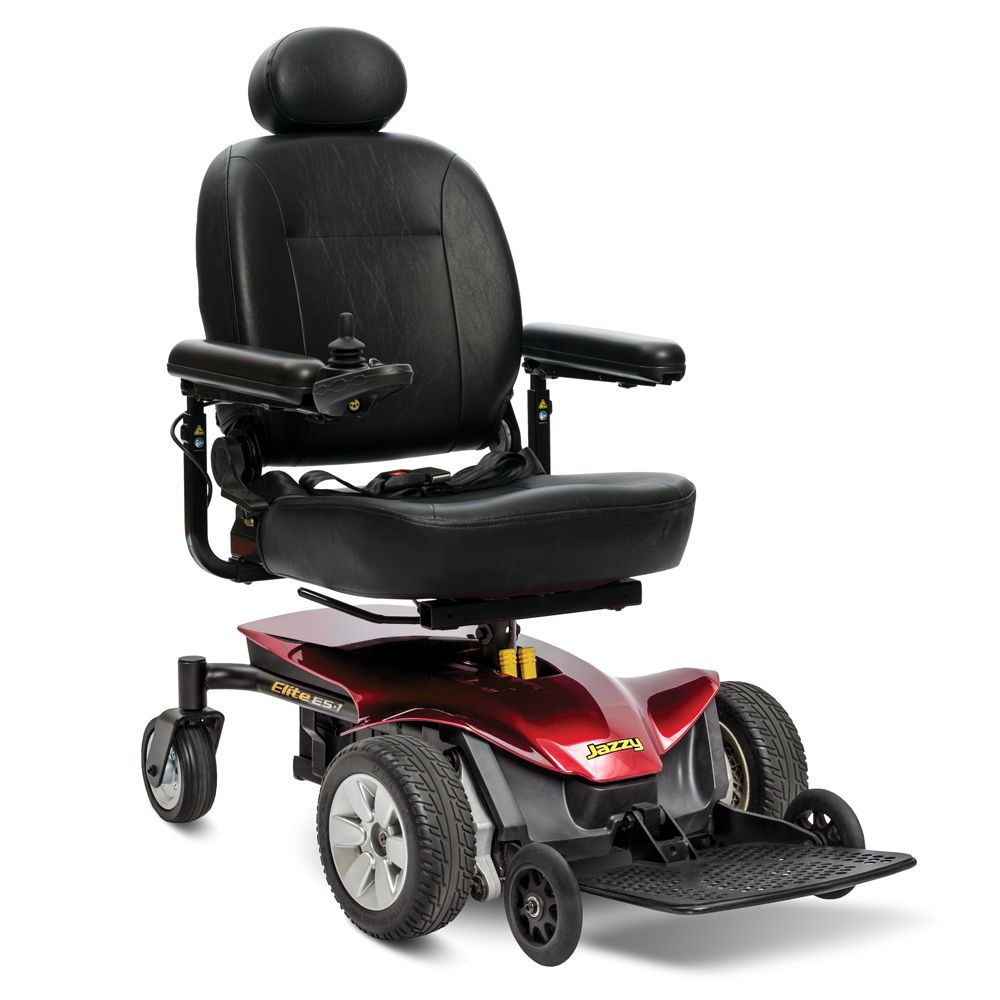

Model Jazzy® Elite ES-1
Weight Capacity 300 lbs.
Turning Radius1 24.75"
Width1 22.75"
Length1,2 34.75"
Maximum Speed3 Up to 4.0 mph
Ground Clearance1 1.5"
Front Wheels 5" solid anti-tips
Drive Wheels 9" solid
Rear Wheels 6" solid casters
Drivetrain Two motor, in-line, front-wheel drive
Braking System Regenerative and electro-mechanical
Suspension Type Limited
High-Back Seat (max. size) 20"W x 20"D
High-Back Seat-to-Floor Range 21.5” — 23.5”
Standard Electronics 40A, PG GC3
Battery Size (2 required) 12 volt, U-1
Standard Battery Charger 3.5A, off-board
Per-Charge Range3,6 Up to 12 miles
Battery Weight5 25 lbs. each
Weight of Heaviest Piece4 69 lbs.
Standard Seat Weight 43 lbs. (comfort high-back)
Standard Seat Size 16" x 16"-18"
18" x 18"-20"
20" x 18"-20"
Medicare Code Coverage Group 1: Standard (K0816)
Warranty
5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:
