SeQual Eclipse 5 Portable Oxygen Concentrator w/ autoSAT + Additional Battery

  • Home
  • SeQual Eclipse 5 Portable Oxygen Concentrator w/ autoSAT + Additional Battery
Product Code : rx-1378
Model No : 6900-SEQ

SeQual Eclipse 5 Portable Oxygen Concentrator w/ autoSAT + Additional Battery

SeQual Eclipse 5 Portable Oxygen Concentrator w/ autoSAT + Additional Battery

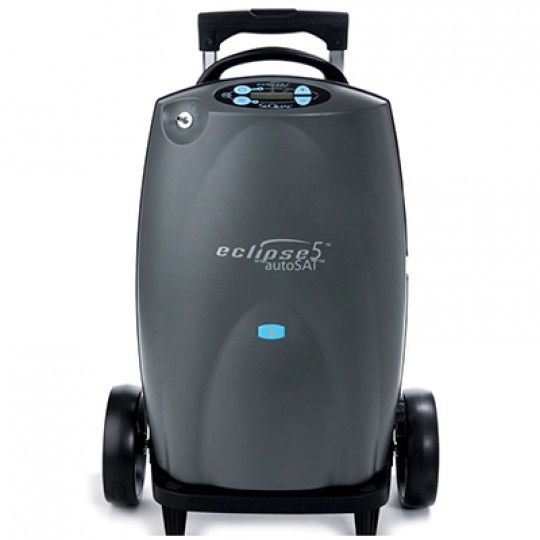

Named the Eclipse because it surpasses all other battery operated oxygen concentrators on the market today with its continuous flow feature. The Eclipse Portable Oxygen Concentrator is the only portable oxygen concentrator on the market that provides continuous flow operation of up to 3 liters per minute in a lightweight unit.

This lightweight Portable Oxygen Concentrator from SeQual introduces an exciting new concept in Oxygen Concentrators - The ECLIPSE ! The industry's first portable oxygen concentrator capable of producing up to 3 lpm of continuous flow oxygen , yet still small enough to plug directly into the 12v power outlet in your car or take on a plane . The Sequal Eclipse portable oxygen concentrator has now been FAA approved for in-flight use.

For pulse-dose , the Eclipse has settings from 1-9 lpm . For times when your aren't near a power source, the Eclipse portable oxygen concentrator brings along it's own power - the internal power-pack supplies over 2 hours of battery power !

The Eclipse portable oxygen concentrator weighs 17 pounds with the power pack installed, or just 15 without the battery-pack. With the telescoping handle and smooth-rolling wheels, it's easy to take with you everywhere! The Sequal Eclipsemeasures 19"x12"x7".

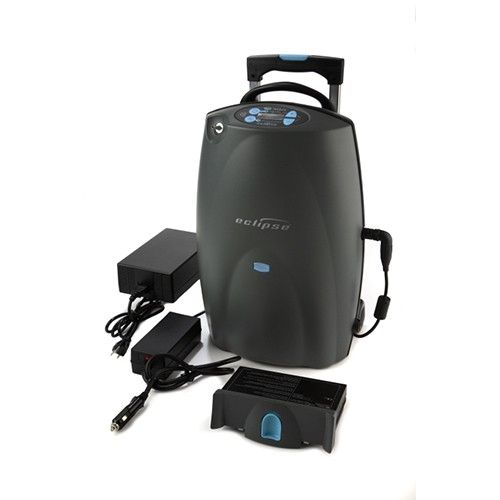

Comes With

1 power-pack battery

AC Power cord

DC (car) power cord

low-profile cart with telescoping handle

comprehensive 3-yr warranty

CAR CHARGER NOW INCLUDED!

Features

Up to 3 LPM continuous flow oxygen

Pulse Settings 1 to 9 LPM.

Runs on house hold current, DC from an auto accessory plug outlet and its own rechargeable battery

Size 19.3 H x 12.3 W x 7.1 D inches

Weight with battery 17.4 lbs

Weight without battery 15 lbs

Power uses 48 watts@ 1.0 LPM 85 watts 6 pulse

Oxygen concentration 91 to 93 %

Operation temperature 50 F to 104 F

Altitude operating range 0 to 13,123 Feet

The Eclipse is equipped with an Oxygen Monitor. (OCI)

WeightLiters Per MinuteSound LevelLengthWidthHeightWarranty
15 lbs1-3 Continuous 1-9 Pulse40-48 dB12.37.119.33 Year Limited

Weight 15 lbs

Size Height: 19.3" Depth: 7.1" Width: 12.3"

Oxygen Flow Continuous flow settings : 0.5 to 3.0 (0.5 liter increments) Pulse flow settings : 16 to 96 (16mL increments)

Oxygen Concentration 90% + 3% @ sea level

Oxygen Output Pressure 5.0 psig (34.5 kPa) nominal

Trigger Sensitivity adjustable between -0.125 cm H2O to -0.40 cm H2O

Sound Level 48 dB(A) at 3.0 LPM continuous flow Mode, 40 dB(A) at 3.0 pulse flow setting

Battery Life 2 Hrs @ 2.00 LPM 1.3 Hrs @ 3.00 LPM 5.2 Hrs @ 2.00 Pulse 3.5 Hrs @ 6.00 Pulse

Power AC Operation : 100 - 240 VAC, 50 - 60 Hz DC Operation : 12 V nominal Power Cartridge (Battery) : Quantitiy (2) 97.5 W-Hr battery packs each containing 7.92 grams of equivalent lithium content NOW COMES WITH CAR CHARGER

Power Cartridge Duration Pulse Flow Setting : 5.2 hours at 2.0 pulse dose setting,12bpm 3.5 hours at 6.0 pulse dose setting,12bpm Continuous Flow Setting : 2.0 hours at 2.0 LPM continuous flow 1.3 hours at 3.0 LPM continuous flow

Power Cartridge Recharge Time 1.8 to 5.0 hrs, dependent upon the flow recharge time setting to achieve 80% capacity from a fully discharged Power Cartridge

Back Up Alarm Power 9 Volt battery

Alarms Loss of power Low Power Cartridge Low Therapeutic Oxygen Output Oxygen flow outside normal limits No inspiration detected in Pulse Flow Mode Unit Malfunction

User Controls ON/ OFF switch Flow adjustment buttons Continuous/ Pulse Flow button

What's Included

 FREE Shipping

 Free 6 Month Supply of Nasal Cannulas!

 No Sales Tax!

3 Year Limited Warranty on Device

6 Month Limited Warranty on Batteries
