Product Code : rx-204
Model No : Item # SFDST4

Spitfire DST 4-Wheel

FEATURES/BENEFITS

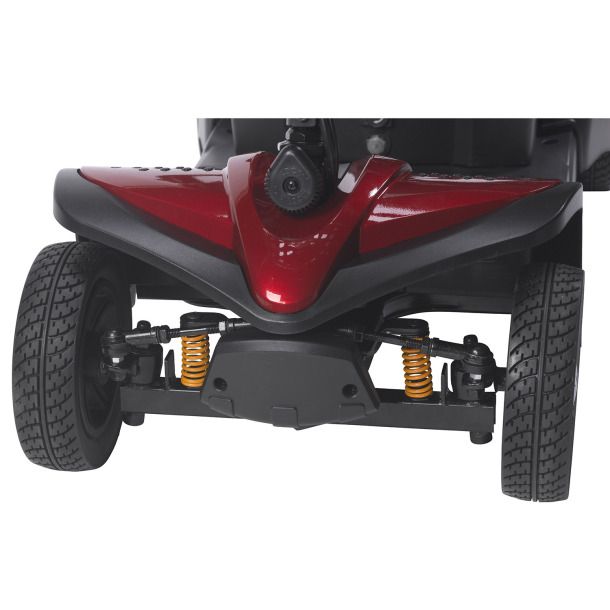

  • Dynamic Suspension Technology (DST) features front and rear suspension coils for the most comfortable ride on all terrain (Figure E)
  • Charge port located on the control panel and battery pack for easy charging
  • Headlight
  • Interchangeable color panels in red and blue
  • Quick & easy disassembly

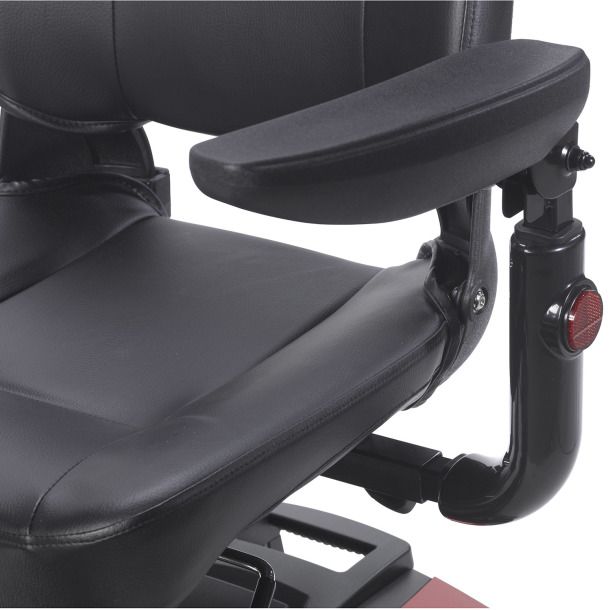

  • Armrests are padded, contoured, width and angle adjustable (Figure G)
  • Delta tiller with ergonomic throttle control (Figure F)
  • Armrest covers with reflectors (Figure G)
  • Large plastic basket with carry handle
  • Height adjustable swivel seat with fold down backrest
  • Anti-tip wheels

Anti-Tip Wheels2" x å_"
Back Height14"
Base Weight70 lbs.
Batteries (pair)20AH
Battery Weight (pair)30 lbs. (20 AH)
BrakesElectromagnetic
Charger2A
ControllerCURTIS 45A
Dimensions42.5" (L) x 21.25" (W) x 36" (H)
Estimated Range15 miles
Freewheel ModeYes
Front Wheels8" x 2"
Ground Clearance2.5"
Heaviest Piece WeightFront Section: 43 lbs.
Max Climbing Angle
Motor270W x 4700RPM
Rear Wheels8" x 2"
Seat Dimensions17.5" (W) x 16" (D)
Seat Weight23 lbs.
Top Speed4.25 mph
Total Weight (excl. hand control)123 lbs.
Turning Radius55"
Warranty on Batteries12 Months
Warranty on FrameLimited Lifetime
Warranty on Electronics, Controller, Drive-Train Components24 months
Weight Capacity325 lbs
Weight Capacity (13046 | 13046-HD)325 lbs.
