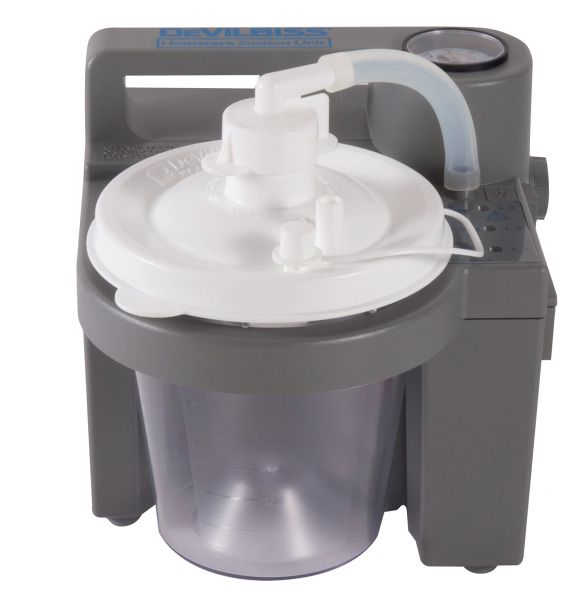

The DeVilbiss 7305 Series Vacu-Aide® Suction Unit meets suction and capacity requirements in a small, lightweight design
High Performance – Vacuum adjustments allow for 80-550 mm Hg and a free flow of 27 LPM

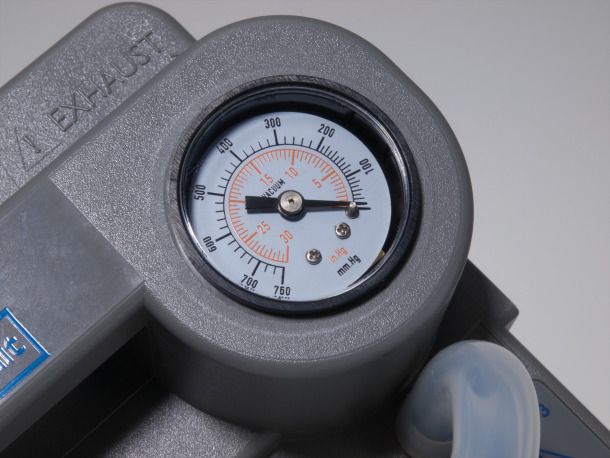

Adjustable Flow Regulator – Easy-to-turn knob conveniently placed directly below gauge for easy use and control Knob has safety lock feature which will not allow the knob to be twisted off (Figure A)
The Vacu-Aide® Suction Unit 7305P series meets the RTCA/DO160D Aircraft Standard as well as the ISO-10079 1:1999 Suction Standard
Optional Battery Capabilities – For use up to one hour Provides the patient with added security when needed most
The high flow capabilities (27 LPM) of the Vacu-Aide® Suction Unit can return a patient to a state of comfort quickly

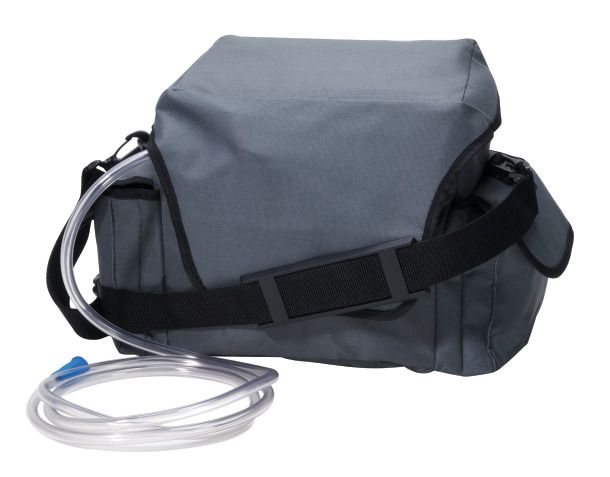

Unit can be operated while inside the carrying case (Figure B)
Dimensions 9.0" (H) x 7.0" (W) x 8.0" (D)
Electrical Requirements 100-240 V AC 50/60 Hz .75 A max; 12 V DC, 33 W max
Flow Range 27 LPM Free Flow, Unrestricted
Vacuum Range 80-550 mm Hg
Warranty Limited 2 Years on Unit, Limited 90 Days on Battery
Weight 6.3 lbs with Battery; 3.8 lbs without Battery
