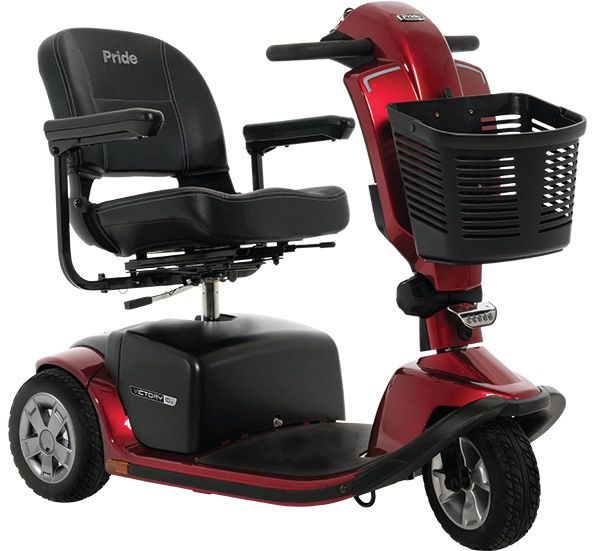

Victory® 10.2 3-Wheel

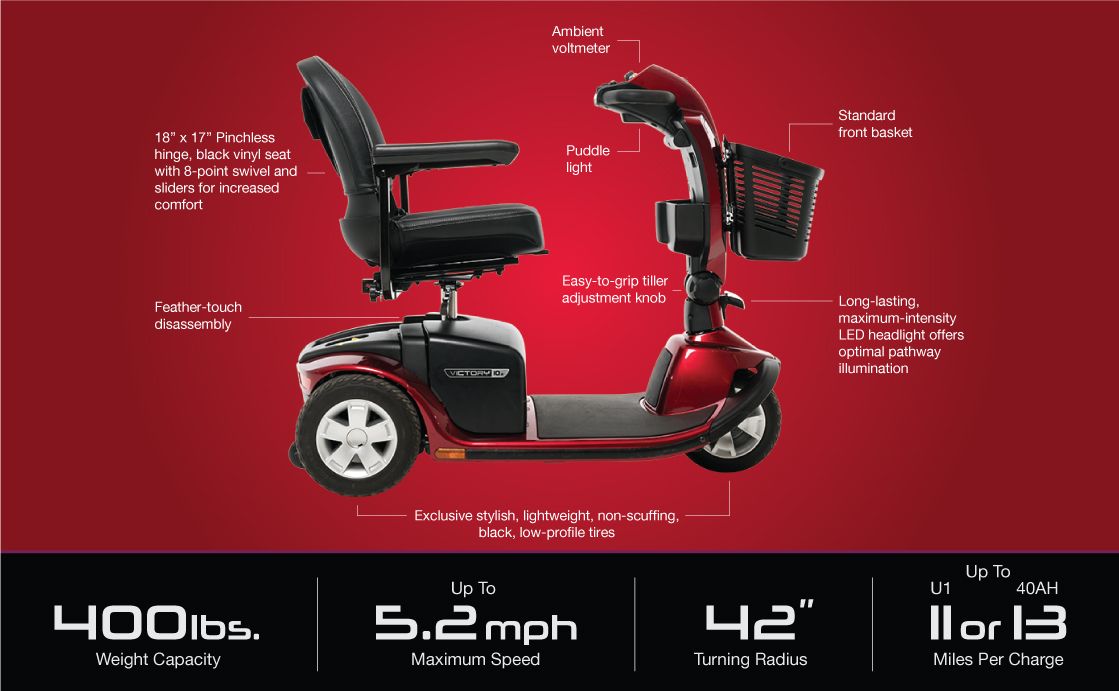

Model Victory® 10.2 3-Wheel

Weight Capacity 400 lbs.

Front Tires 3.5" x 10" solid

Rear Tires 3.5" x 10" solid

Maximum Speed1 Up to 5.2 mph

Ground Clearance3 2.4" at transaxle, 2.1" at anti-tip, 3.0" at side deck

Turning Radius3 42"

Length / Width3 45" / 22.25"

Seating Type: Foldable, compact

Weight: 30 lbs.

Material: Black Vinyl

Dimensions: Width: 18", Depth 17"

HCPCS Code K0801 Group 1 Heavy Duty

Seat-to-Ground 22"-24"

Weight (w/o Batteries)3,6 130.25 lbs.

Seat-to-Deck 15.25"-17.25"

Battery Weight5 (U-1) 24.5 lbs. each, (40 AH) 32.5 lbs. each

Battery Requirements3,4 (U-1, Standard), (40 AH, Optional)

Per Charge Range1,2 Up to 11 miles (U1), Up to 13.5 miles (40 AH)

Battery Charger 3.5 amp, off-board (U-1)

5-amp, off-board (40 AH)

Weight of Heaviest Piece3 56.5 lbs. (front section)

Warranty Frame: lifetime limited;

Drivetrain: 2-year limited;

Electronics: 2-year limited

Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%). 2 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or 3%). 3 AGM or gel cell type required. 4 Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 5 Battery weight may vary based on manufacturer.

All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or — 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

• Product Stability & Brakes Effectiveness Tests
• Fatigue & Impact Strength Verification Tests
• Overall Product Performance Verification
• Dimensional Requirement Compliance
• Product Durability & Reliability Testing
• Material Protective Coating Testing Verification
• Misuse and Abuse Testing
• Ergonomic Verification
• Environmental Testing for Adverse Weather Operation Conditions
• Electronic Systems Performance and Durability
• Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
• Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
• UL94VO Flammability Testing for Compliance of Plastic Components
• Electromagnetic Compatibility (EMC)

Warranty

Lifetime limited warranty on frame

2-year limited warranty on electronics

2-year limited warranty on drivetrain

Brochure
